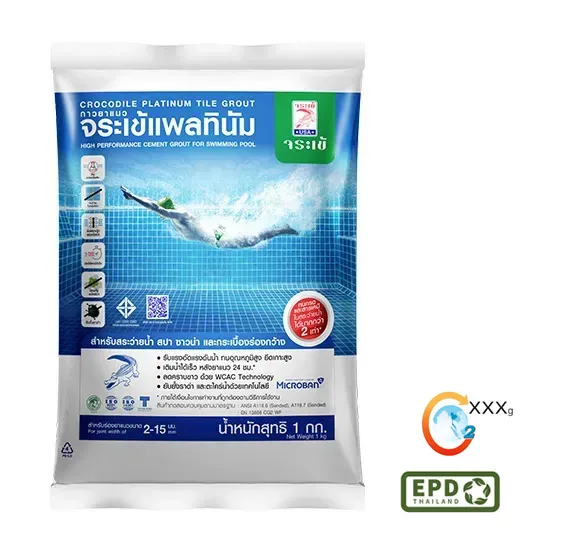

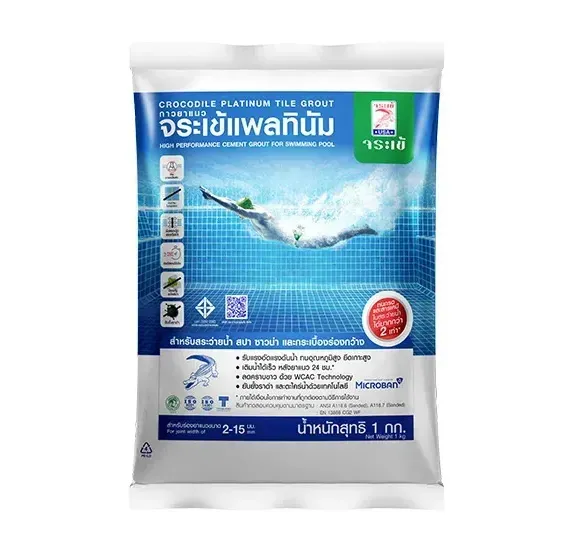

Crocodile Platinum Grout

Fast Setting, High Performance Sanded Cement Grout

Product Features

  • High compressive strength, resistant to water pressure and high temperatures, excellent bond strength.
  • Provides more than twice the resistance to acids and swimming pool chemicals.
  • Fast setting, allows early access and water filling within 24 hours after grouting.
  • Anti-black mold and algae with Microban® Technology.
  • Hydrophobic agents reduce water absorption, which helps prevent deep-set stains.
  • Minimized efflorescence with WCAC Technology.
  • Suitable for joint widths from 2 to 15 mm.

American Standard: ANSI A118.6 (Sanded), A118.7 (Sanded)

European Standard: EN 13888 Class CG2WA

International Standard: ISO 13007 Class CG2WAF

Thai Industrial Standard: TIS 2892-2563 (2020) (Sanded high performance cement grout)

Color: 9 colors

Packing

Net weight: 1 kg bag, packed 20 bags per box or packed 20 bags per bucket (20 kg total).

American Standard Tile Grout for Swimming Pools, Spas, Saunas and Wide Joints.

Crocodile Platinum Grout is a premium sanded cementitious grout formulated with a special blend of performance-enhancing additives and high-quality pigments. Manufactured using WCAC technology, it delivers a strong, durable grout surface with fast setting and integrated efflorescence resistance. Enhanced with Microban® antimicrobial technology, the grout provides long-lasting protection against microbial growth throughout the product’s lifespan. The formulation also includes hydrophobic agents that help reduce water absorption and prevent deep-set stains on the grout surface. Recommended for areas requiring high durability such as swimming pools, spas, saunas, wide joint tiles, and exterior applications.

Pre-Grouting Preparation

  • Joint width should be between 2-15 mm, and joint depth should not be less than two-thirds of the tile thickness.
  • Grouting should be done at least 48 hours after tile installation, or once the tile adhesive has fully cured.
  • Prior to grouting, ensure that the joints are clean and free from dust, dirt, debris, and any contaminants. Verify that there is no standing water in the joints.

Mixing Ratio

Crocodile Platinum Grout 1 kg (per bag) per 0.23 L of water or Crocodile Platinum Grout 4 parts per 1 part of water by volume.



Mixing

  • Pour Crocodile Platinum Grout into clean water according to the specified mixing ratio. Mix using a low-speed drill or manually with a clean trowel or spatula until a smooth, lump-free consistency is achieved.
  • Allow the mixture to rest for approximately 5 minutes to enable the chemical reaction. Remix briefly before application and use all mixed material within 20 minutes.
  • If the grout becomes too stiff or viscous due to extended standing time, do not add water to retemper. Discard the old mix and prepare a new batch.



Application

  • Using a rubber face trowel, apply the well-mixed grout diagonally across the joints to avoid pulling grout out. Remove excess grout from the tile surface with rubber face trowel as much as possible.
  • Allow the grout to set until it begins to cure, then clean the tile surface thoroughly using a damp cloth or sponge. After that, wipe the tile surface again with a dry cloth to remove any remaining grout residue.
  • Allow to dry for at least 24 hours before opening the area for use or filling swimming pools.*

*This must be carried out under proper conditions and procedures as recommended in the application guidelines.



Curing

During the first 24 hours, cover the grout with natural kraft paper (brown paper typically used for bags or wrapping) to allow the grout to gradually cure and to protect the surface from dust or other contaminants. Plastic sheets or newspaper should not be used as a substitute for kraft paper.



Final Cleaning After Grouting

  • If necessary, a diluted acid or Crocodile Cement Remover may be used to remove cement stains. Always test on a small, inconspicuous area first to prevent damage to the tile surface.
  • Glossy coatings or stain removers should only be applied after the grout has fully cured for at least 30 days and should also be tested on a small area before full application.

Swimming Pool Water Chemical Balance

  • The pH range should be maintained between 7.2-7.8. If the pH drops below 7, the water becomes mildly acidic, which may lead to corrosion of cement-based grout and tile adhesive.
  • The sulfate concentration should not exceed 250 ppm. Excessive sulfate levels can deteriorate grout and tile adhesive due to chemical corrosion.
  • The chlorine range should be maintained between 1.0-2.0 ppm. This concentration helps prevent the growth of bacteria and algae. Chlorine within this standard range does not affect the adhesion of grout or tile adhesive. If the chlorine concentration is excessively high, it may cause corrosion and pose serious health risks to users.
  • The calcium hardness range should be kept between 200–250 ppm. If the level is too low, the water may extract calcium from the grout, leading to corrosion. If too high, it may cause white stains on tile surfaces and grout joints and may also affect pump components due to scaling or corrosion.

Caution

  • May cause irritation to the eyes, skin, or respiratory system. Wear appropriate protective clothing, gloves, eye and face protection.
  • In case of eye contact, rinse immediately with plenty of water and seek medical advice.
  • If skin or face contact occurs, wash immediately with soap and water.
  • Keep out of reach of children.
  • Do not ingest.



Storage Conditions

  • The product should be stored in a shaded, dry, and moisture-free area with good ventilation. Avoid areas with excessively high temperatures, as this may cause product degradation.
  • The product has a shelf life of 1 year from the manufacturing date, provided it is stored in a tightly sealed, undamaged, and unopened package.
  • If the product is not completely used, always reseal it tightly after each use. Please note that the remaining shelf life may be reduced depending on storage conditions.

Legal Disclaimer

The information provided is given in good faith, based on current knowledge and Jorakay Corporation’s experience with the products when they are properly stored, handled and applied in normal situations and in accordance with the recommendations of Jorakay Corporation. This is useful for information and consulting but is not legally binding. In particular, it does not exempt the user from testing and verifying the suitability of the product for the desired application and purpose. Jorakay Corporation reserves the right to modifications that improve the product or its application. This version invalidates the previous ones.
